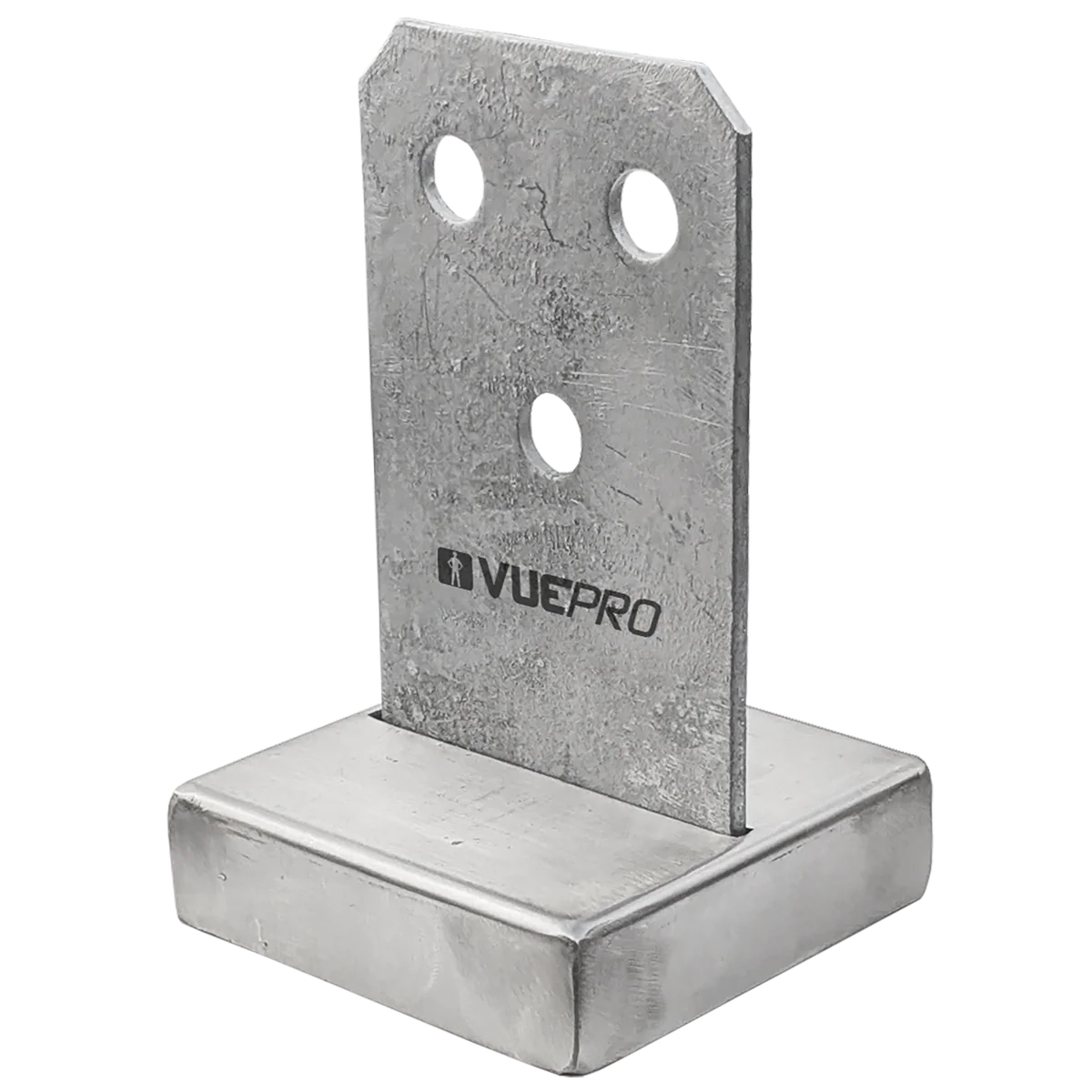

Vuepro 90mm Galvanised Concealed Bolt Down Post Support is designed for fixing decorative timber posts with a concealed finish, suitable for 90-100mm timber posts.

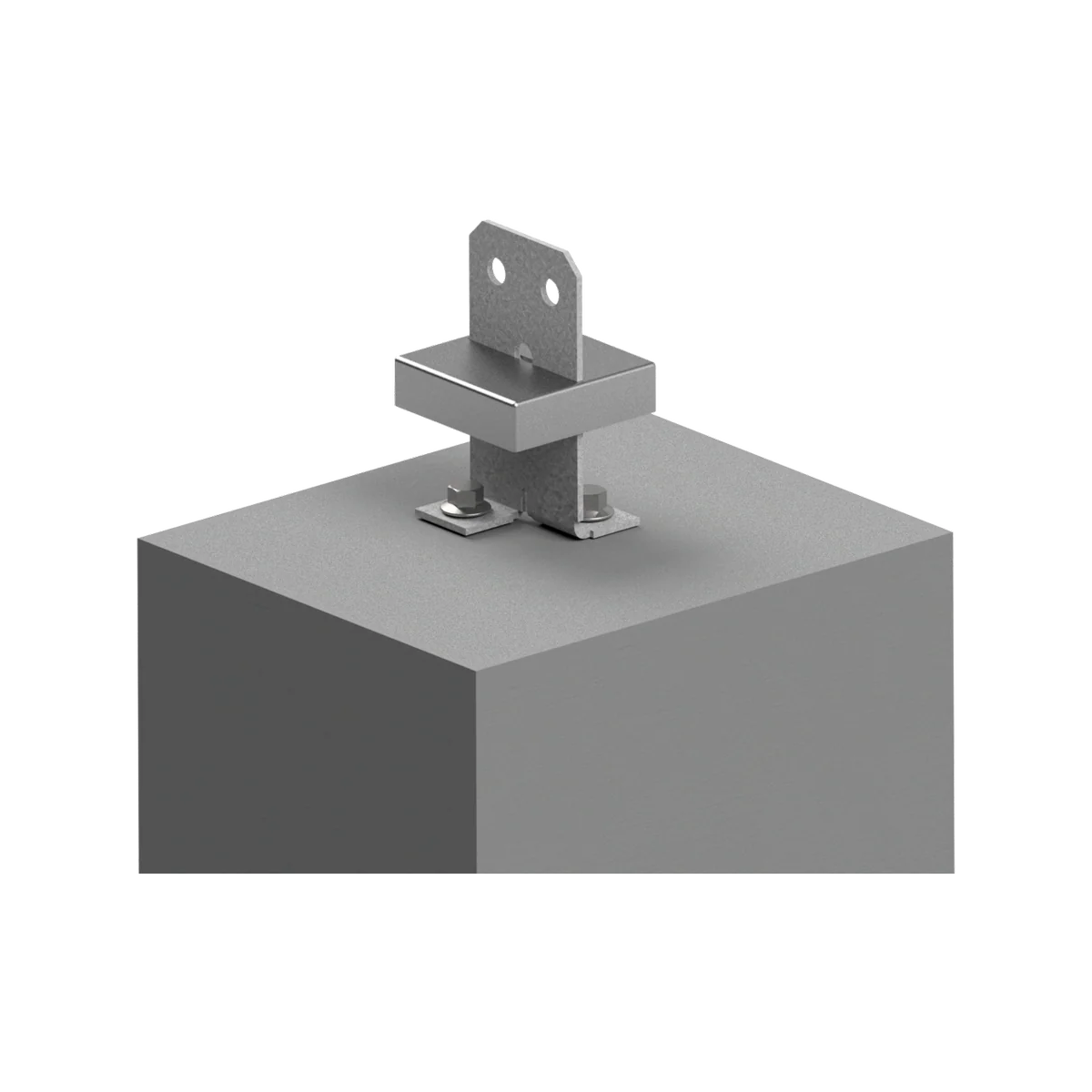

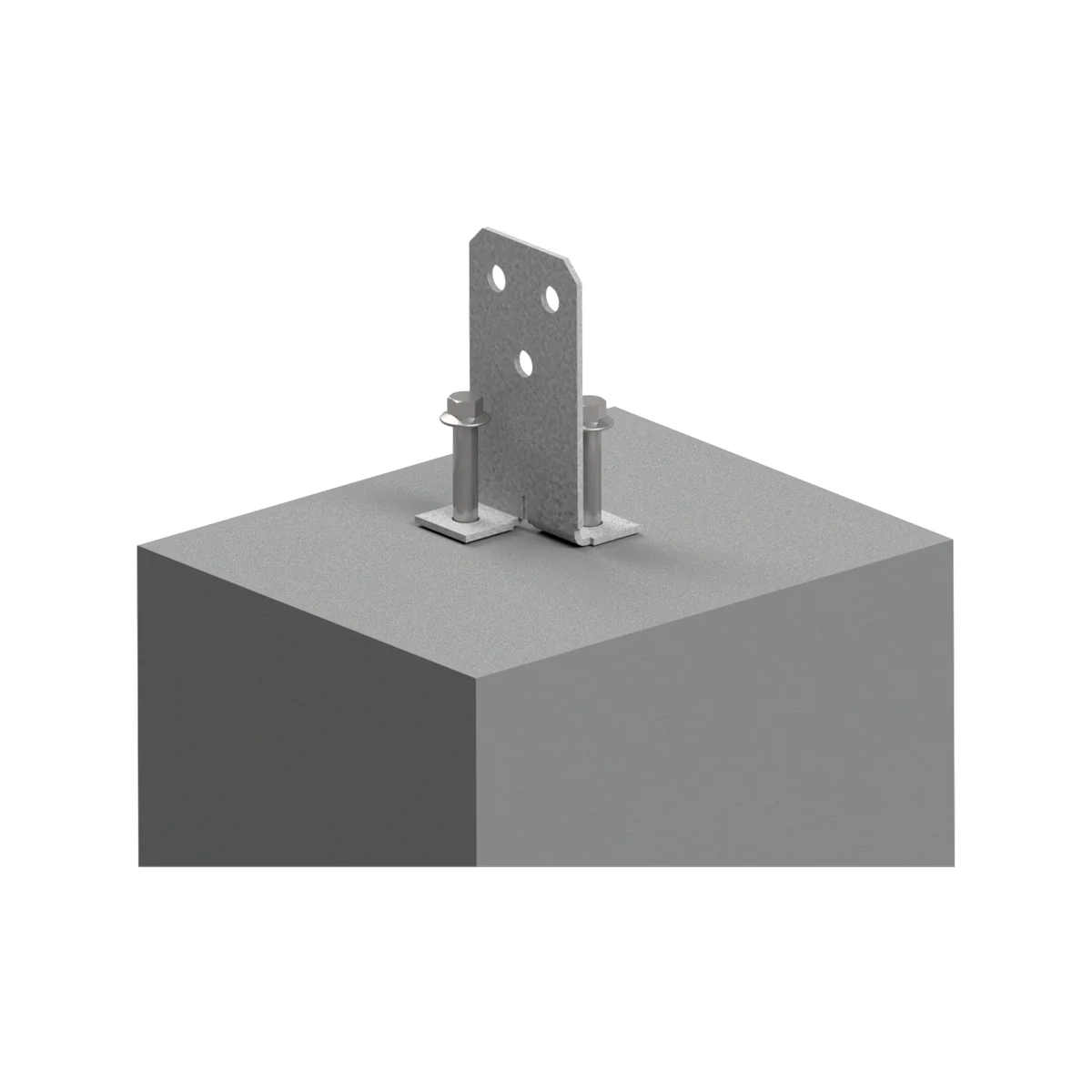

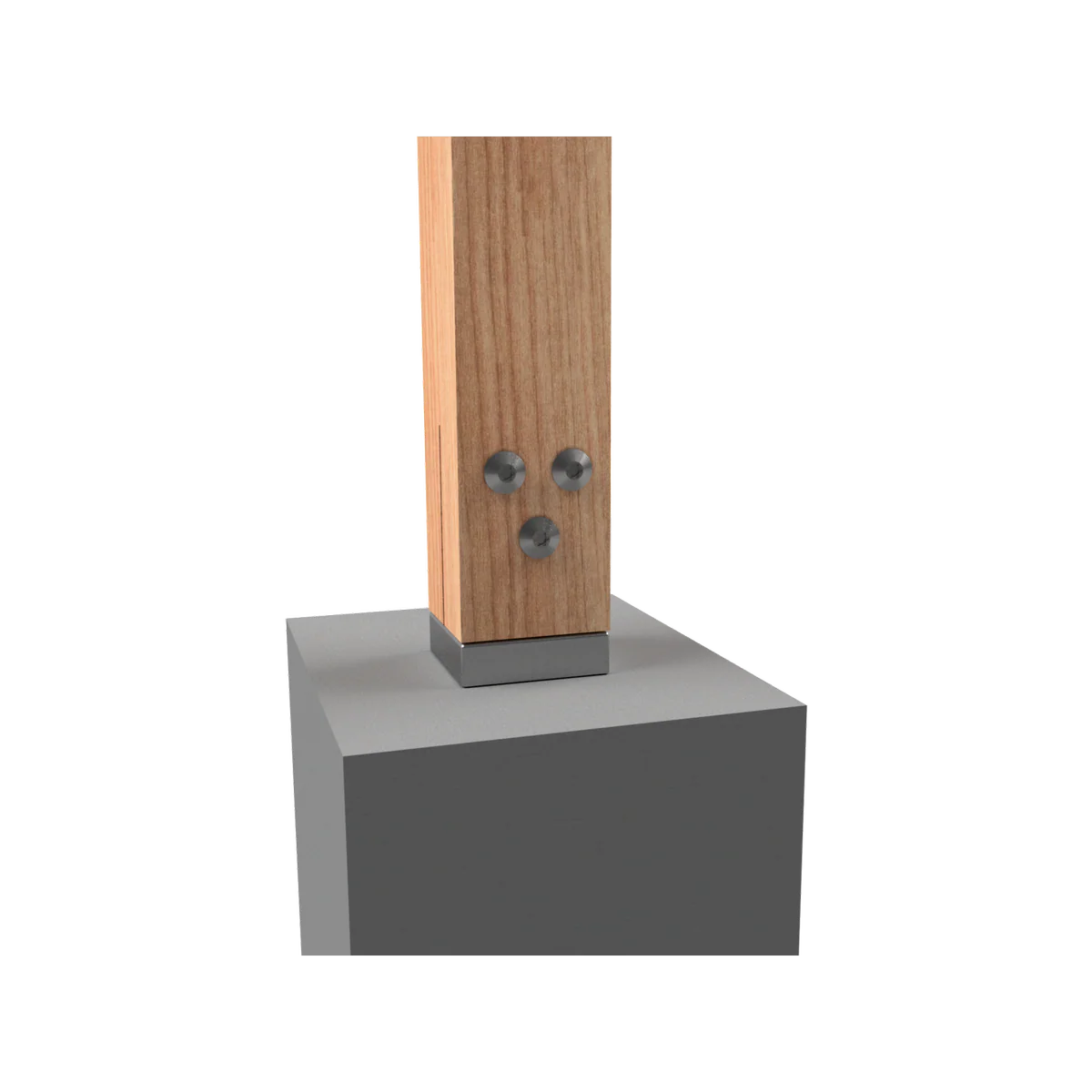

The VUEPRO Concealed Bolt Down Post Support Kit offers a robust solution for securing timber posts with an architectural finish. This system is typically bolted onto concrete and serves as an alternative to traditional U-shaped post supports. Constructed from 3mm thick G300 Z275 steel, it provides excellent strength and durability, while the concealed caps are made from Stainless Steel 304. The post support is designed to accommodate timber posts ranging from 90mm to 100mm in width, ensuring a secure and aesthetically pleasing installation.

Features

• Architectural finish with concealed blade and cap
• Suitable for 90-100mm timber posts
• 3.0mm thick steel blade for enhanced strength
• Galvanised finish for long-lasting durability
• Manufactured from G300 Z275 steel

Specifications

Dimensions (W x H x D)	90mm x 145mm x 90mm
Material	G300 Z275 steel, Stainless Steel 304
Model Number	PCBPS90

The Vuepro 90mm Galvanised Concealed Bolt Down Post Support is a reliable choice for securing timber posts.
