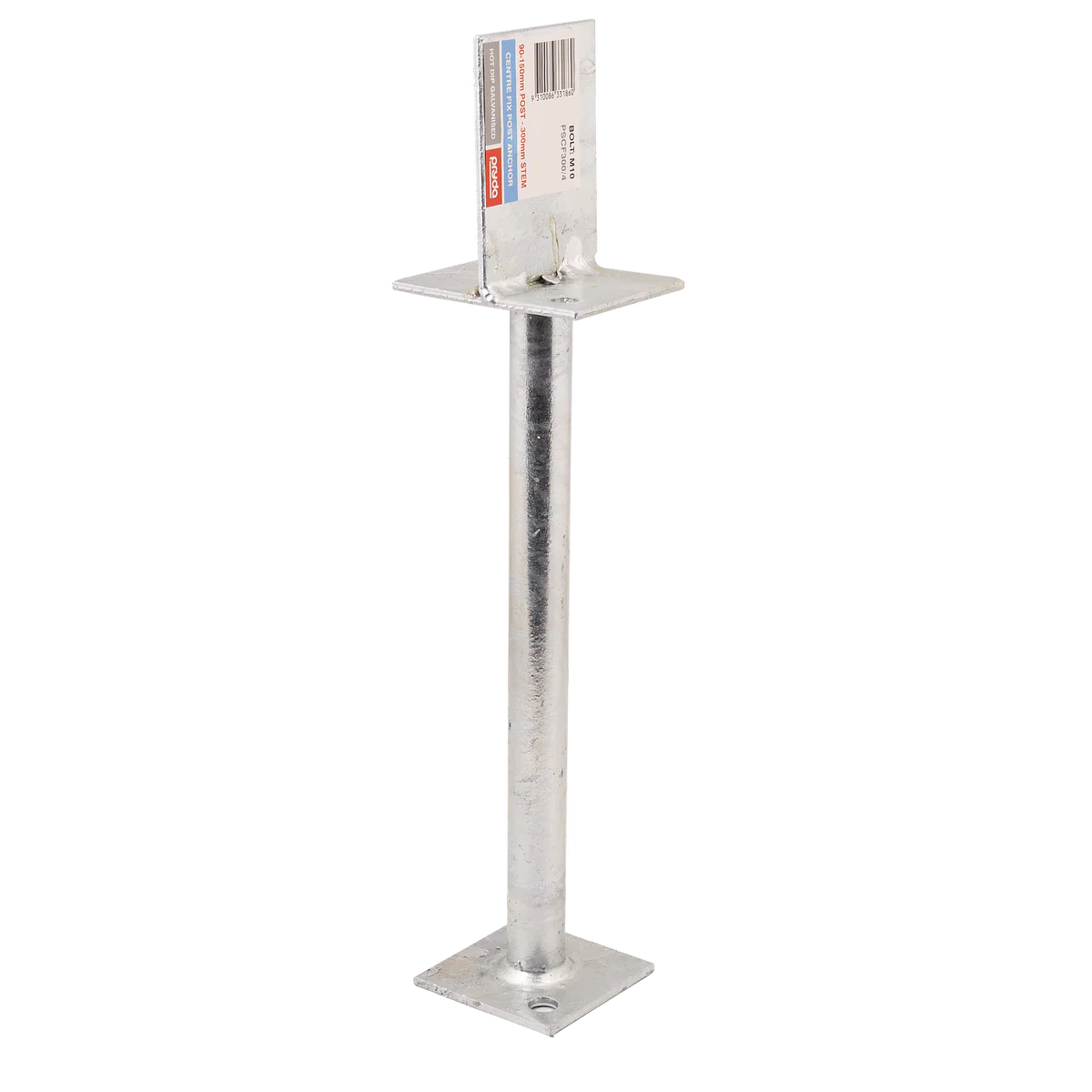

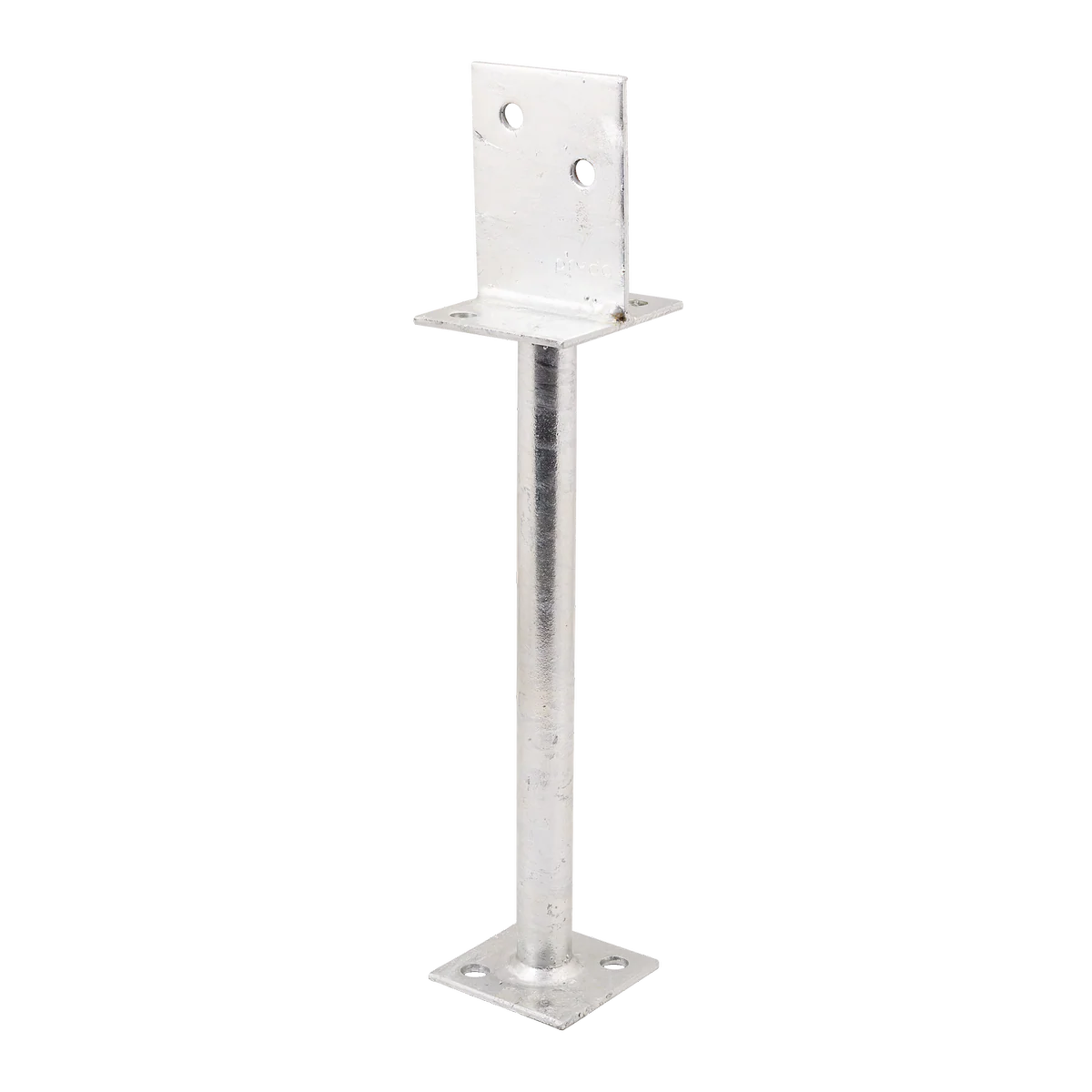

Pryda m10 300mm Centre Fix Post Anchor is a robust anchoring solution designed for securing posts to concrete structures, ensuring compliance with Australian standards.

This post anchor is engineered to conform to AS3660.1 - 2000 for termite protection, featuring fully welded joints and sealed stems within stirrups. The anchor's design allows for a discreet installation, with only the bolt heads and nuts visible. It is primarily intended for bolting to existing concrete but can also be cast-in with a maximum clearance of 75mm. The stem has a diameter of 25mm and a thickness of 2.0mm, while the stirrup thickness is 4mm, providing durability and strength for various applications.

Features

• Conforms to AS3660.1 - 2000 for termite protection
• Welded joints for enhanced structural integrity
• Sealed stems in stirrups for added termite protection
• Designed for hidden installation with only bolt heads visible
• Suitable for bolting to existing concrete or cast-in with a maximum clearance of 75mm

Specifications

Dimensions (W x H x D)	168mm x 300mm x 44mm
Weight	1.06kg
Material	Hot Dip Galvanised Steel
Model Number	PSCF300/4
Leg Length	300mm
Stirrup Width	90-150mm
Finish	Galvanised

The Pryda m10 300mm Centre Fix Post Anchor is designed for reliable post anchoring solutions.
