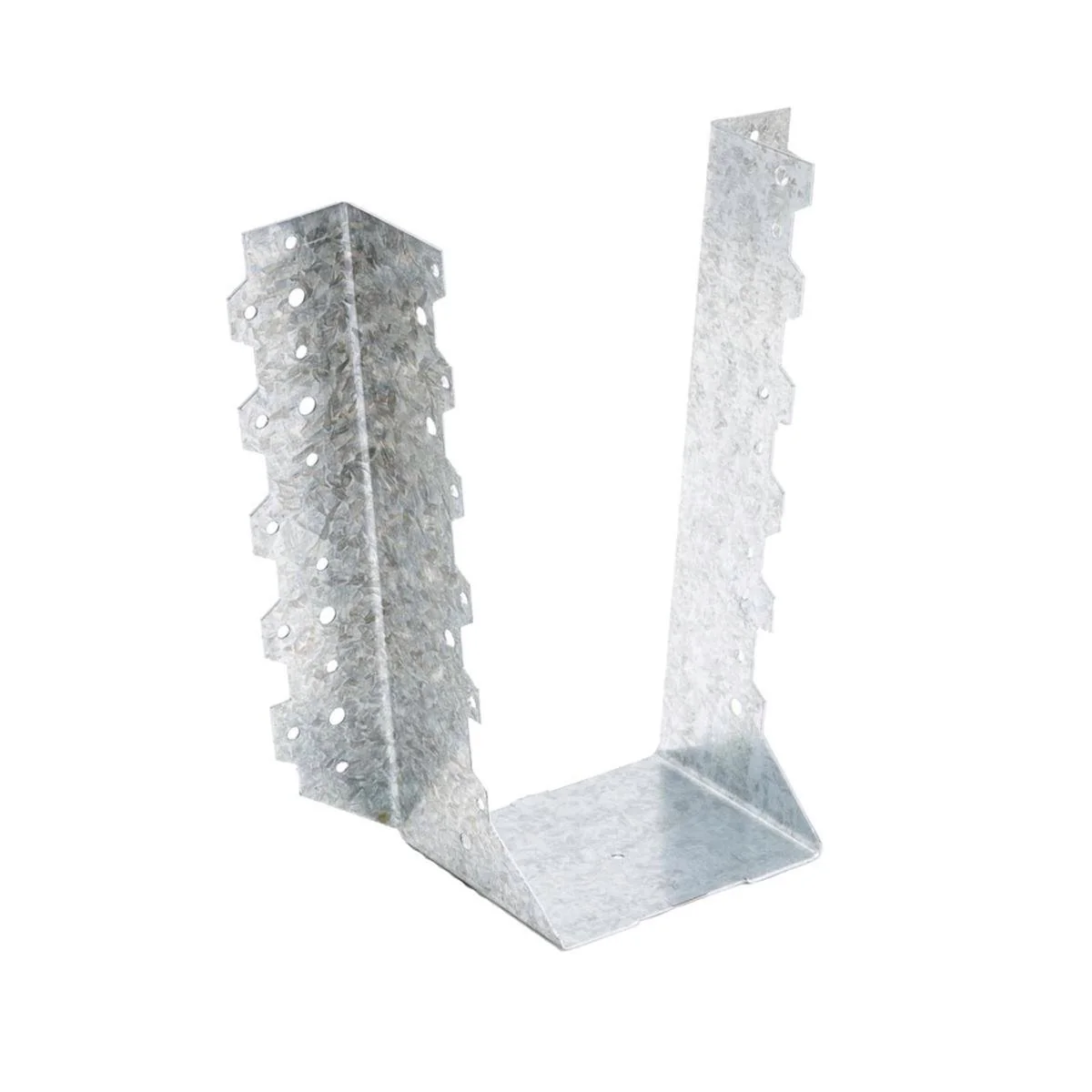

Pryda Joist Hanger Suits 90 x 200mm Box 25 is designed for beam to beam connections, providing structural support for various timber constructions.

This joist hanger is suitable for connecting floor or roof trusses, right angle joints, and is ideal for carports, decks, gazebos, or pergolas. Constructed from Galvabond® sheet steel, it offers high corrosion resistance for external applications. The design features wide flanges for easy nailing and drilling, and includes both face mount and top mount options for versatile installation. It complies with Australian Standards AS7120.1-2010, AS/NZS1170, AS4055-2006, AS1684.2-2010, and AS1684.3-2010 when installed according to Pryda’s Design Guidelines.

Features

• Ideal for beam to beam connections and structural support.
• Constructed from Galvabond® sheet steel for corrosion resistance.
• Wide flanges facilitate easy nailing and drilling.
• Face mount and top mount options for versatile installation.
• Complies with relevant Australian Standards when installed correctly.

Specifications

Dimensions (W x H x D)	90mm x 195mm x 1mm
Weight	7kg
Material	G300 Z275 galvanised steel
Colour	Grey
Model Number	FB90200

Pryda Joist Hanger Suits 90 x 200mm Box 25 provides reliable support for various timber structures.
