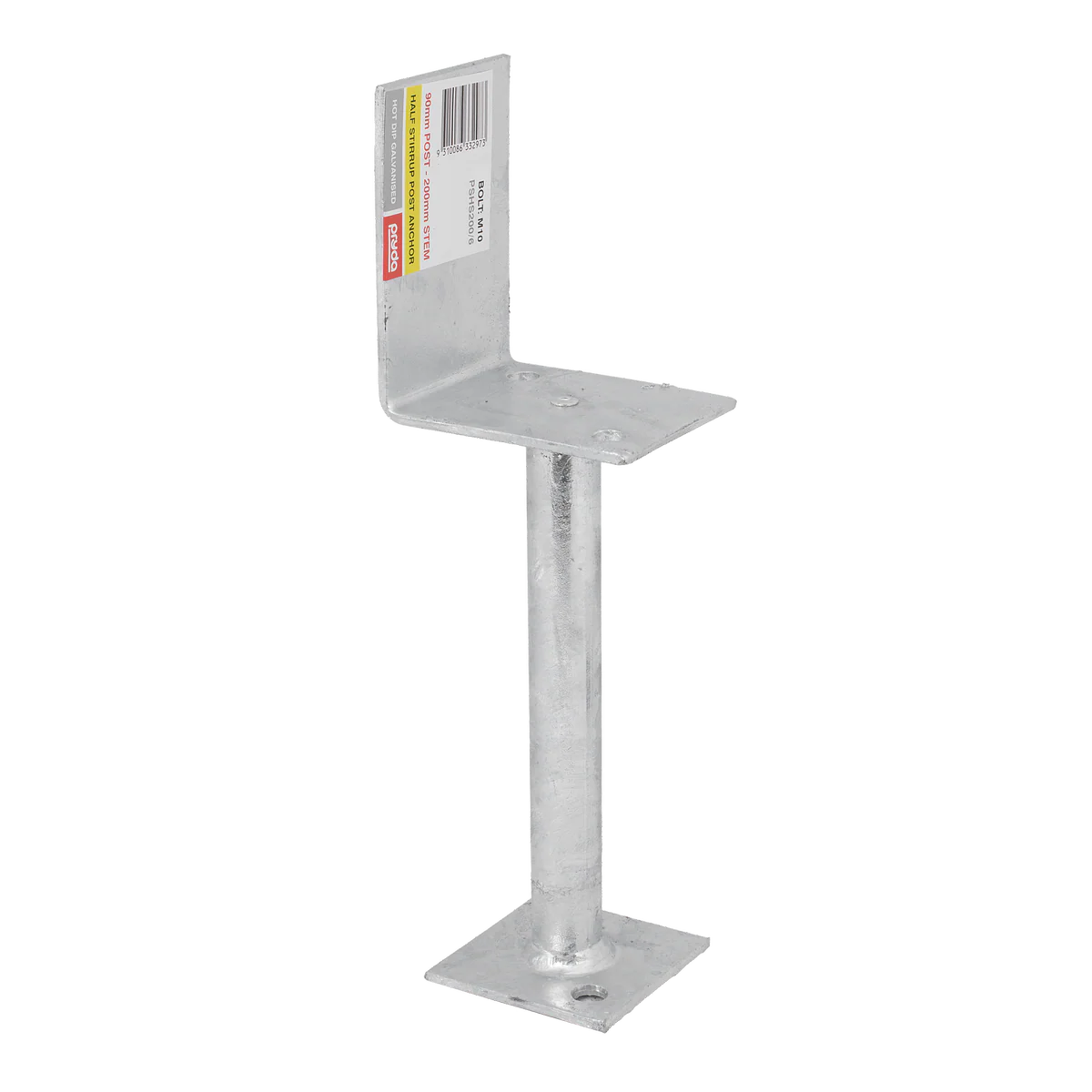

Pryda 200mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to existing concrete structures, ensuring stability and compliance with Australian standards.

This half stirrup post anchor is engineered to conform to AS3660.1 - 2000 for termite protection, featuring all welded joints for enhanced durability. With a stem diameter of 25mm and a thickness of 2.0mm, it provides reliable support. The stirrups are sealed for termite protection as per AS1397-2001, and the stirrup thickness is 4mm. This anchor is primarily used for bolting to existing concrete but can also be cast-in with a minimum clearance of 75mm, making it ideal for applications where posts are positioned against walls or steps.

Features

• Conforms to AS3660.1 - 2000 for termite protection
• All joints are welded for increased strength
• Sealed stems in stirrups for enhanced termite protection
• Designed for bolting to existing concrete or cast-in applications
• Suitable for posts located against walls or steps

Specifications

Dimensions (W x H x D)	200mm x 176mm x 35mm
Weight	0.92kg
Material	Hot Dip Galvanised Steel
Model Number	PSHS200/6
Leg Length	200mm
Bolt Hole Size	M10
Stirrup Width	90mm
Finish	Galvanised

The Pryda 200mm m10 Half Stirrup Post Anchor is engineered for reliable post anchoring in various applications.
