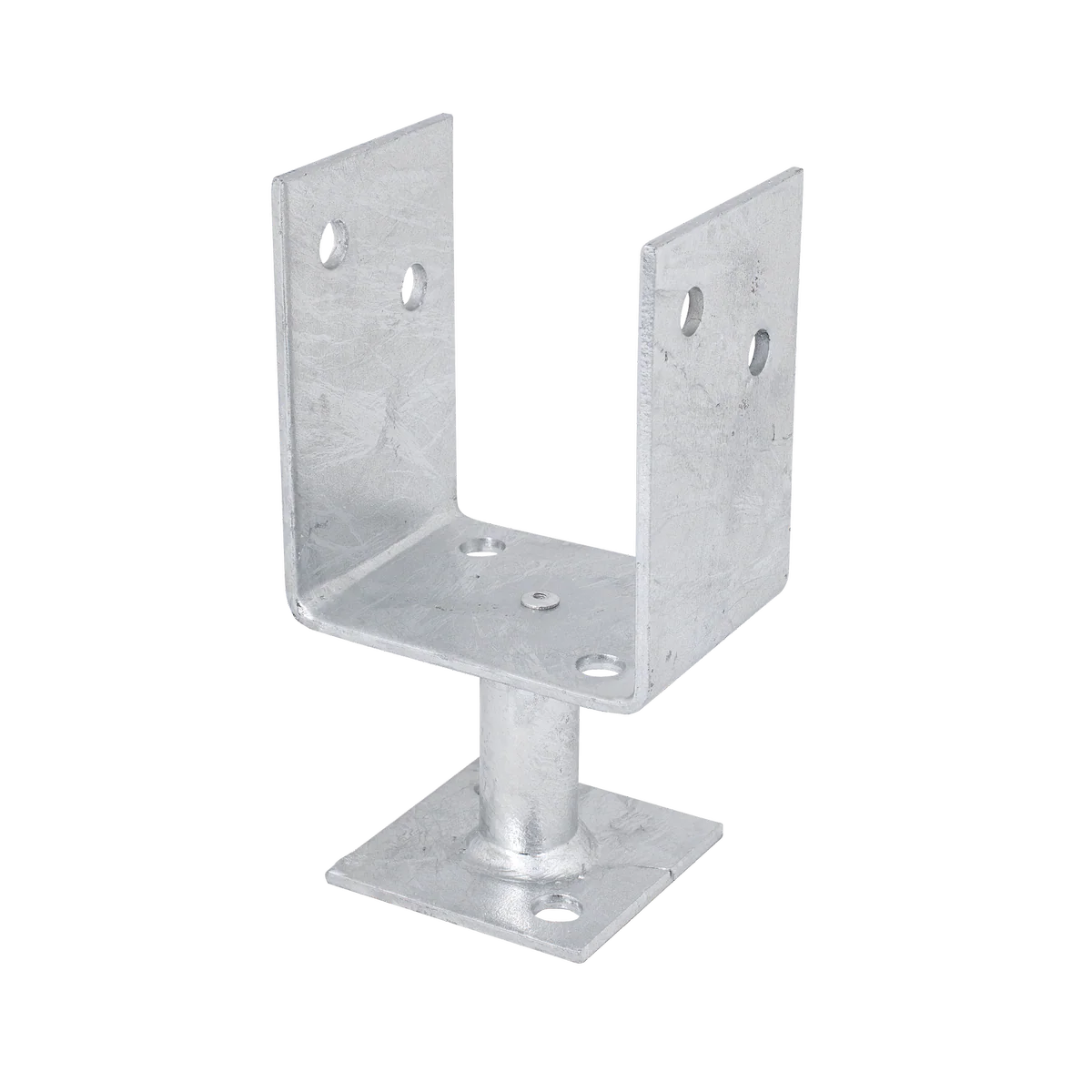

Pryda 65x90mm m10 Full Stirrup Post Anchor is designed for bolting to existing concrete, accommodating various post sizes from 90 x 90mm to 150 x 150mm.

This Full Stirrup Post Anchor is engineered for securing timber posts to timber or concrete bases. It features a hot dipped galvanised coating for long-term protection against severe external environments, including coastal areas. The stirrups are sealed for termite protection in compliance with AS1397-2001. With a stirrup thickness of 4mm, this product meets Australian Standards when installed according to Pryda’s design guidelines.

Features

• Suitable for bolting to existing concrete surfaces.
• Accommodates post sizes from 90 x 90mm to 150 x 150mm.
• Hot dipped galvanised for long-term corrosion resistance.
• Sealed stirrups for termite protection.
• Complies with multiple Australian Standards for safety and performance.

Specifications

Dimensions (W x H x D)	92mm x 174mm x 75mm
Weight	0.97kg
Material	G250 AS1397-2001 galvanised steel
Model Number	PSFS6590/6
Stirrup Width	90mm
Leg Length	65mm
Bolt Hole Size	M10

The Pryda 65x90mm m10 Full Stirrup Post Anchor is a reliable solution for securing posts in various applications.
