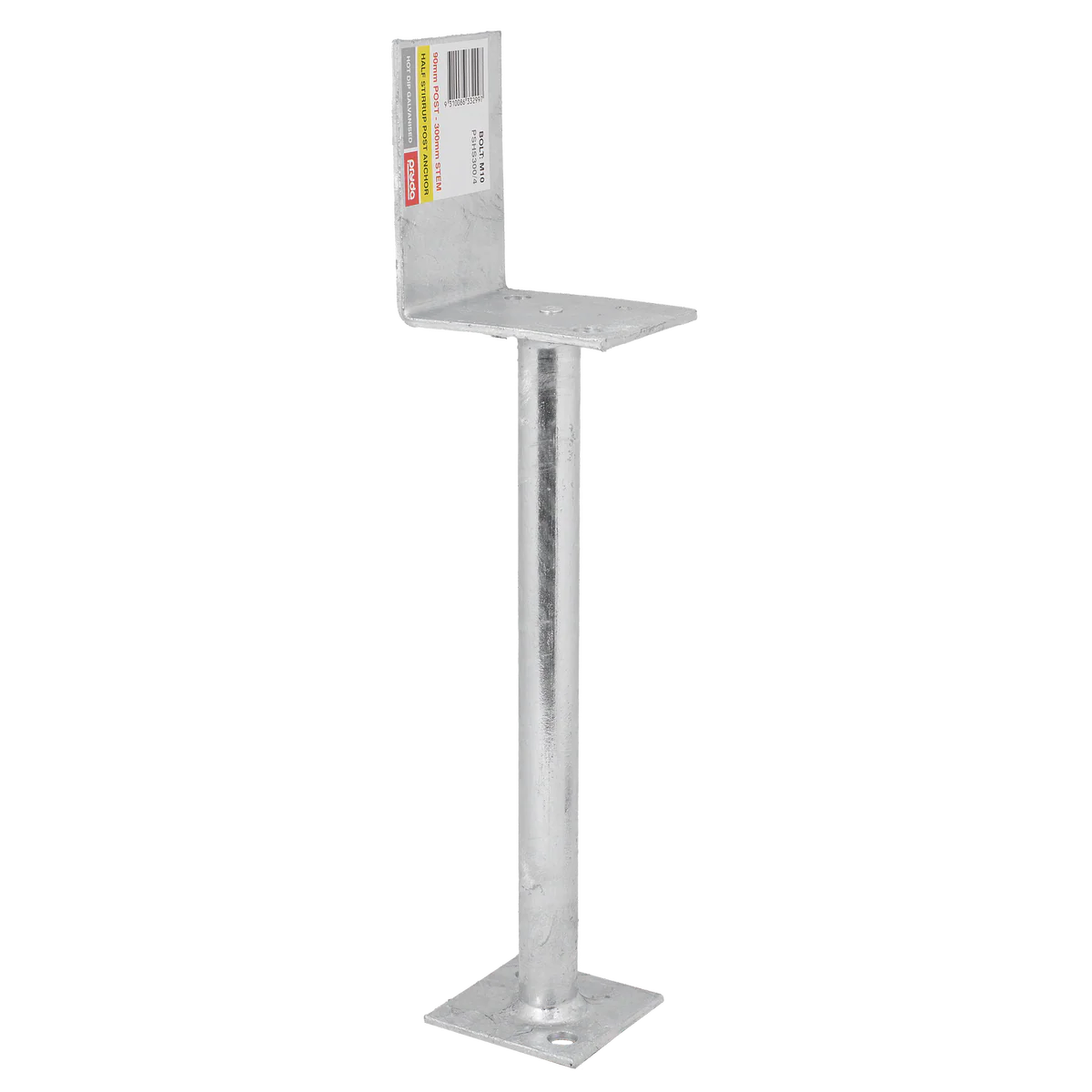

Pryda 300mm m10 Half Stirrup Post Anchor is a robust anchoring solution designed for securing posts to existing concrete structures, ensuring compliance with Australian standards.

This half stirrup post anchor is primarily used for bolting to existing concrete, with the option for cast-in installation when a minimum clearance of 75mm is maintained. It features a welded design for durability and is constructed from hot dip galvanised steel, providing resistance against termites as per AS3660.1 - 2000 and AS1397-2001 standards. The stirrup's thickness is 4mm, and it is particularly suited for applications where the post is positioned against a wall or step, allowing for bolting from one side only.

Features

• Conforms to AS3660.1 - 2000 for termite protection
• Welded joints for enhanced strength and durability
• Sealed stems in stirrups for additional termite protection
• Half stirrup design ideal for bolting to existing concrete
• Minimum clearance of 75mm for cast-in installation

Specifications

Dimensions (W x H x D)	300mm x 172mm x 45mm
Weight	1.051kg
Material	Hot Dip Galvanised Steel
Model Number	PSHS300/4
Stirrup Width	90mm

The Pryda 300mm m10 Half Stirrup Post Anchor is designed for reliable post anchoring in various applications.
