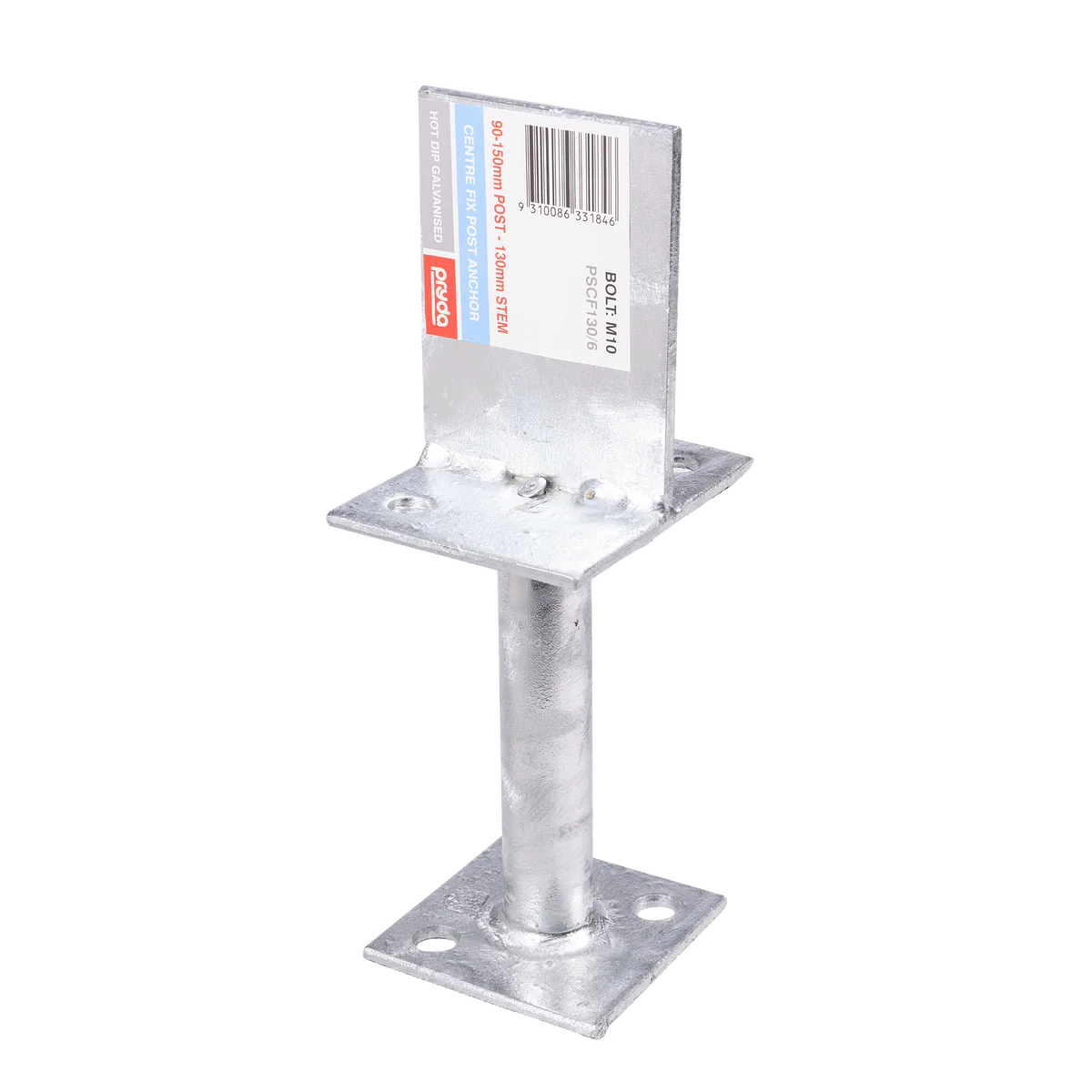

Pryda 130mm m10 Centre Fix Post Anchor is a structural component designed for securing posts to concrete surfaces, ensuring stability and compliance with Australian standards.

This post anchor is engineered to conform to AS3660.1 - 2000, providing protection against termites. It features welded joints and a robust stem with a diameter of 25mm and a thickness of 2.0mm. The stirrups are sealed for termite protection according to AS1397-2001, with a stirrup thickness of 4mm. Designed for discreet installation, only the bolt heads and nuts are visible once installed. It is primarily used for bolting to existing concrete but can also be cast-in with a maximum clearance of 75mm, making it versatile for various construction applications.

Features

• Conforms to AS3660.1 - 2000 for termite protection
• Welded joints for enhanced durability
• Sealed stirrups for added termite protection
• Designed for hidden installation with only bolt heads visible
• Can be bolted to existing concrete or cast-in

Specifications

Dimensions (W x H x D)	130mm x 266mm x 34mm
Weight	0.79kg
Material	Hot Dip Galvanised Steel
Model Number	PSCF130/6
Leg Length	130mm
Bolt Hole Size	M10
Stirrup Width	90-150mm
Finish	Galvanised

The Pryda 130mm m10 Centre Fix Post Anchor is a reliable solution for securing posts in construction projects.
