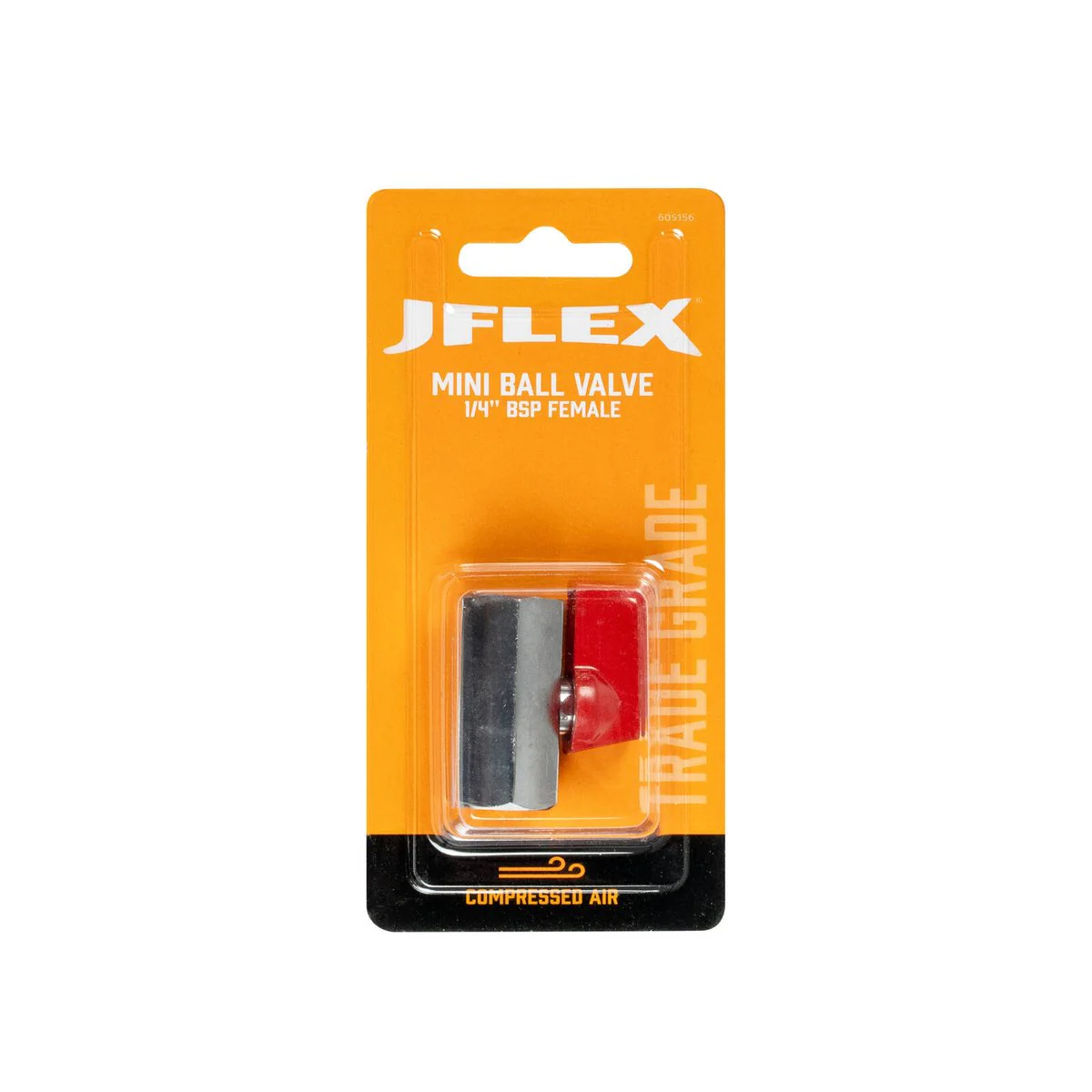

Jflex Ball Valve Mini 1 4 Bsp Female is a compact shut-off valve designed for high-pressure applications, featuring a nickel-plated brass body and 1/4" BSP female threads.

The Jflex 1/4" BSP Mini Ball Valve is engineered for use in high-pressure compressed air systems, oil lines, and water and steam applications. Constructed with a nickel-plated brass body, this valve offers excellent corrosion resistance and durability, making it suitable for workshop, industrial, and plumbing environments. The valve features a compact design with a smooth-turning red lever handle that allows for quick shut-off with a simple quarter-turn. Rated for pressures up to 200 psi and a maximum operating temperature of 90°C, it is versatile and reliable for various fluid control needs.

Features

• Nickel-plated brass body for rust and wear resistance
• Compact lever handle for quick shut-off control
• Suitable for air, oil, steam, and water applications
• High pressure rated up to 200 psi (1378 kPa)
• 1/4" BSP female threads for versatile inline use

Specifications

Dimensions (W x H x D)	22mm x 30mm x 42mm
Weight	0.065kg
Material	Nickel-plated brass
Colour	Brass
Model Number	605156

The Jflex Ball Valve Mini 1 4 Bsp Female is designed for reliable fluid control in various applications.
