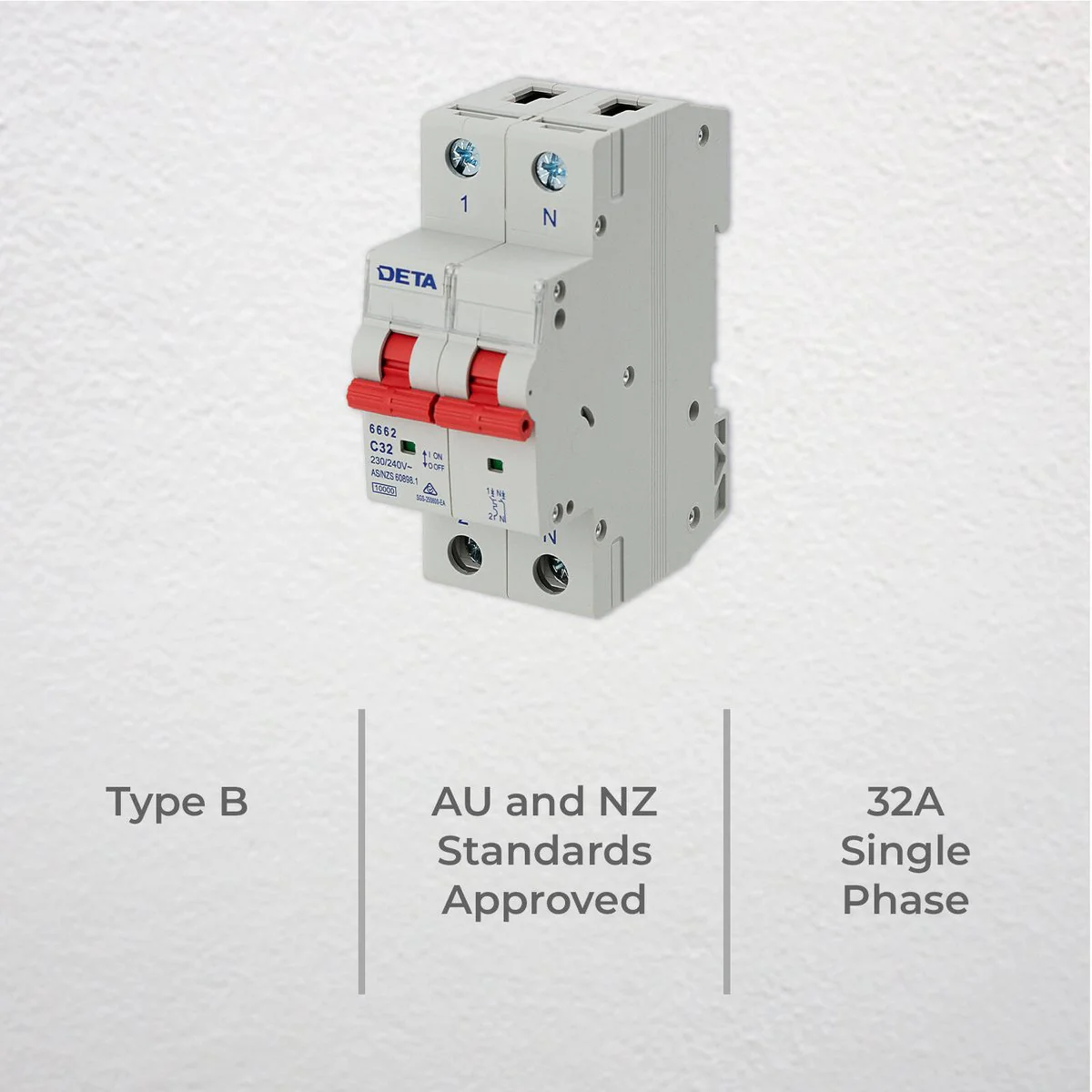

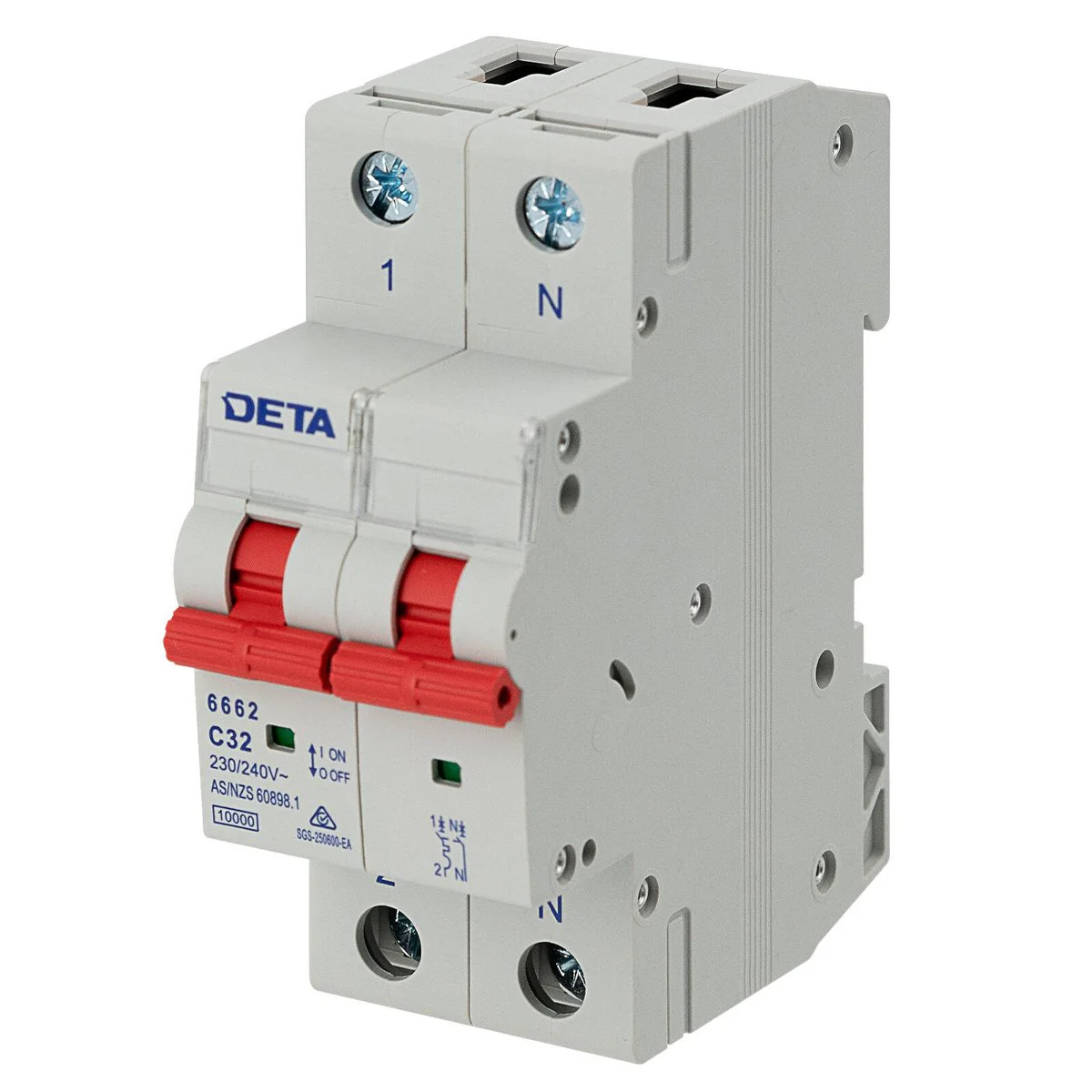

Deta 32a Single Phase Mcb 1p N C Curve 10ka is a reliable circuit protection device designed for residential and commercial electrical systems.

The Deta 32a Single Phase Mcb 1p N C Curve 10ka is engineered to provide effective overcurrent protection for circuits with moderate inductive loads. Its C-Curve tripping characteristic makes it suitable for general purpose applications, ensuring safety in both residential and commercial settings. The compact design allows for easy installation in standard DIN rail enclosures, while its robust construction minimizes the risk of fire and equipment damage from overloads and short circuits. This device complies with Australian and New Zealand standards, making it a dependable choice for electrical distribution systems.

Features

• C-Curve tripping characteristic for moderate inductive loads
• Compact design for easy installation in DIN rail enclosures
• Protects against overloads and short circuits
• Suitable for residential and commercial electrical systems
• Ensures compliance with Australian and New Zealand standards

Specifications

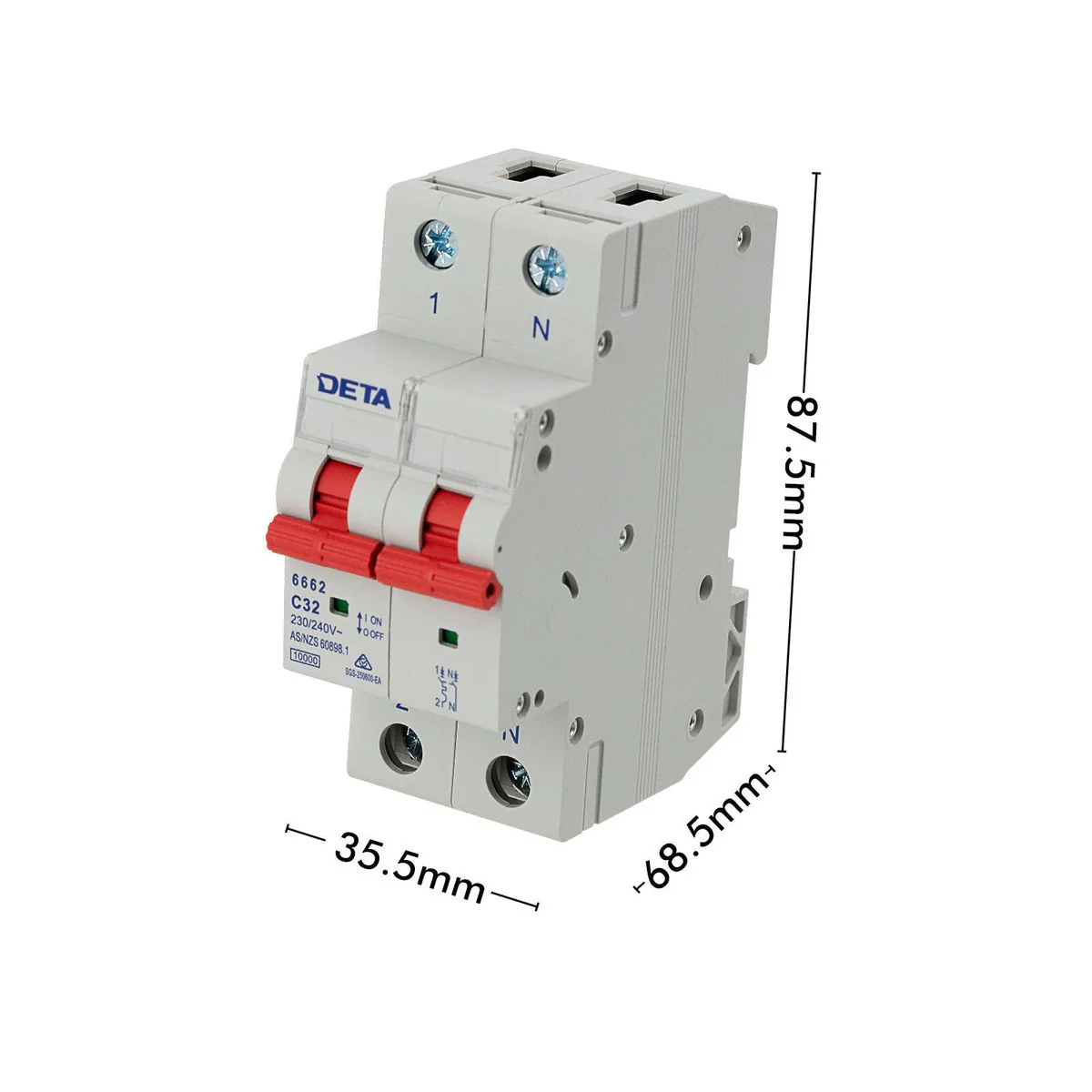

Dimensions (W x H x D)	35.5mm x 87.5mm x 68.5mm
Weight	0.25kg
Material	Nylon
Colour	Light Grey
Model Number	6662B-32B

Deta 32a Single Phase Mcb 1p N C Curve 10ka provides essential circuit protection for various applications.
